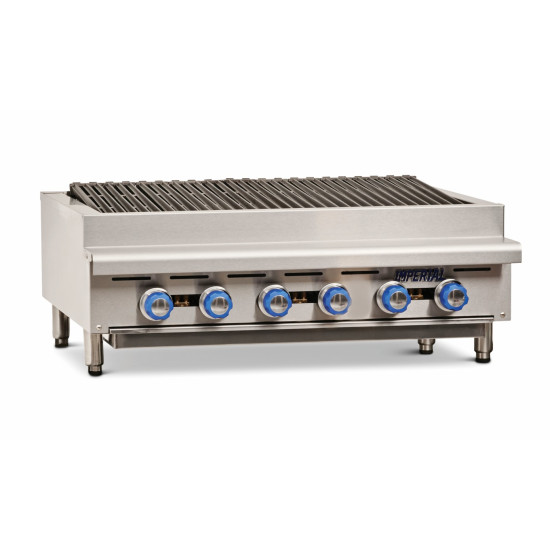

IMPERIAL - IRB-36

RADIANT BROILER BURNER SYSTEM - Individually controlled 15,000 BTU/hr. (4 KW)

stainless steel burners.

- Burners are located every 6" (152 mm) with individual controls.

- Removable, reinforced cast iron radiants prevent clogging of burners and provide even broiling.

- Standard cast iron radiants provide maximum heat retention and intense surface temperatures.

- Optional stainless steel radiants provide quick heat-up while minimizing flare-ups.

Stainless steel burners and

radiant combination creates a

searing hot grate temperature.

TOP GRATES - Heavy duty cast iron top grates provide attractive char-broiler markings.

- 3" x 22" (76 x 559 mm) sections remove easily and safely for cleaning.

- Slanted cooking surface provides a range of cooking temperatures.

- Each top grate blade has a cast-in grease trough that allows excess fat to flow to the front

grease gutter minimizing flare-up.

- No tools are needed to remove grates, radiant covers and stainless steel burners for cleaning.

EXTERIOR FEATURES - Stainless steel front, sides and landing ledge for cleanability and

professional look.

- Welded and polished stainless steel seams.

- Range Match profile when placed on a refrigerated base or equipment stand.

- Large 5" (127 mm) stainless steel landing ledge is ideal for plating.

- Control knobs are durable cast aluminum with a Valox™ heat protection grip.

- Full width grease gutter and large capacity removable drip pan.

- Insulated throughout cooktop to conserve energy.

- 4" (152 mm) heavy duty legs with adjustable feet.

- One year parts and labor warranty.
