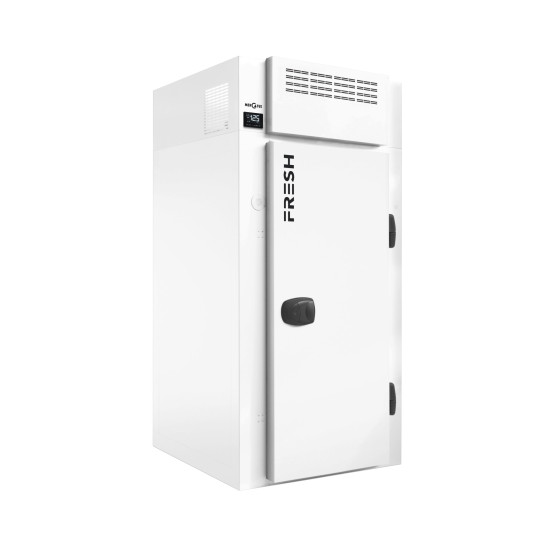

Fresh Mini - O12 Chiller Cold Room

The O12 – Chiller Cold Room is a compact yet spacious refrigeration solution, offering a substantial 1500-litre capacity within just 1.2 m² of floor space. Designed with 80 mm thick insulation, it ensures reliable performance in temperatures ranging from -2 °C to +8 °C, even in hot environments. Supplied flat-packed for easy transport and assembly, this efficient and energy-saving cold room is ideal for restaurant professionals needing high-capacity storage in limited spaces.

Model: O12

Description: Mini Chiller Cold Room (-2 °C +8 °C)

Features:

• Energy efficient and climate class 5;
• Electronic controller with HACCP alerts;

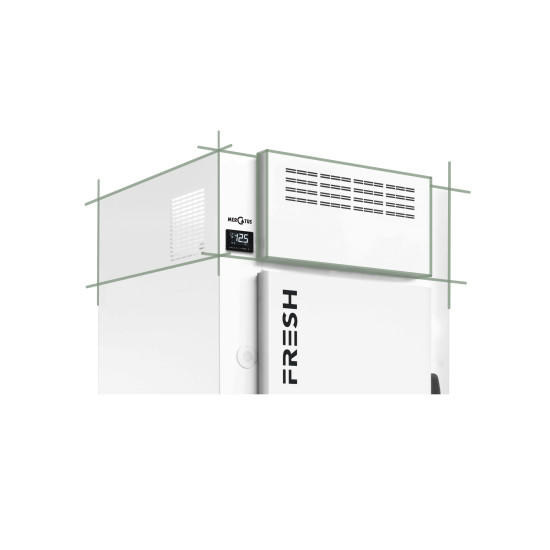

• Pre-assembled cooling unit, with heated pressure relief valve and lighting;
• Self-closing door;
• Reversible door with reinforced hinges;

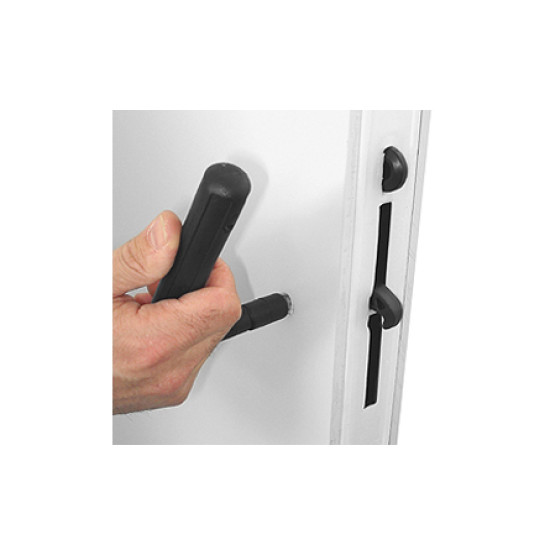

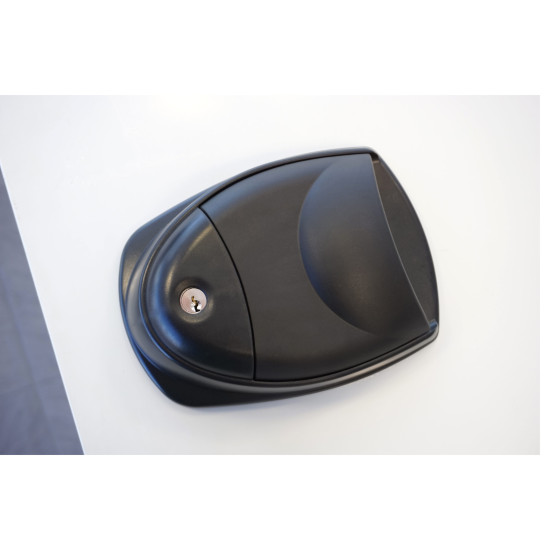

• Ergonomic handle with key lock and anti-panic opening on the inside;
• Easy-to-clean magnetic sealing gaskets, removable without tools;
• Eco-friendly polyurethane insulation with zero ODP and zero GWP;
• Non-slip floor with rigid PVC film and preformed cut-out 135° corners for ease of clean;
• Cooling unit with automatic defrost and evaporation by hot gas;
• Forced draft condensation and evaporation.

Specifications

• Width: 1100 mm
• Depth: 1080 mm
• Height: 2280 mm
• Gross volume: 1496 L

Technical Data

• Operating temperature: -18 … -23 °C
• Power supply: 220-240 V / 50 Hz
• Input power: 890 W / 3,8 A
• Cooling power:1077 W
• Refrigerant fluid / GWP: R290/3
• Refrigerant charge: 0,100 kg
• Climate class: 5

Alarms & Warnings

• Door open (after 30 minutes)
• High temperature (10 °C above setpoint)
• Compressor, evaporator, probes and other service requirements

Compliance

• EN 60335-1
• EN 60335-2-89
• EN 61000-3-2:2014
• EN 61000-3-3:2013
• EN 55014-1:2017 + A11:2020
• EN 55014-2:1997 + A1:2001 + A2:2008 + AC:1997

Included Accessories

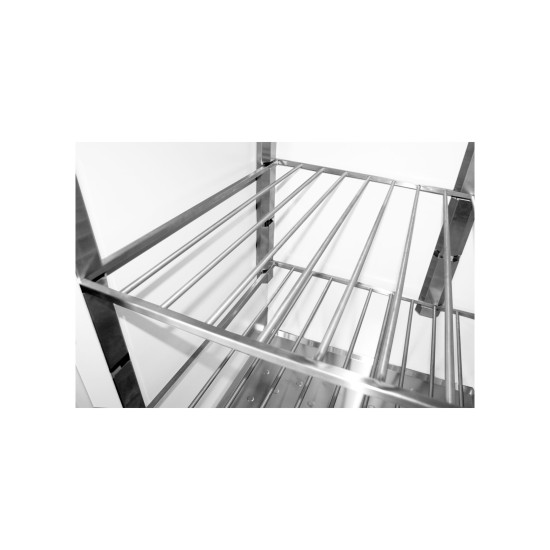

• 3 stainless steel grid shelves
• Multi-level shelves support
